    YWE Winding 24 VDC Insulation B Class Brushless E Motor

    Ask Lasest Price
    Brand Name : OEM
    Model Number :
    Certification : CE/ISO/ROHS
    Payment Terms : L/C, T/T, Western Union, Paypal
    Delivery Time : 15-25days
    Price : Negotiable
    Supply Ability : 25000pc/month
    • Product Details
    • Company Profile

    YWE Winding 24 VDC Insulation B Class Brushless E Motor

    YWE Winding 24 VDC Insulation B Class Brushless E Motor


    General specification


    Winding type

    YWE

    Hall effect angle

    120 Deg. Electrical angle

    Radial play

    0.025mm/400g

    End play

    0.025mm/400g

    Max. radial force

    15N @ 10mm from the flange

    Max. axial force

    10N

    Insulation class

    B

    Dielectric strength

    500VDC for one minute

    Insulation resistance

    100MΩ min., 500VDC


    Performance Data

    ModelUnits42ZW3S41A2042ZW3S41A4042ZW3S41A8042ZW3S61A20
    Number of poles　8　　　
    Number of phase　3　　　
    Rated voltageVDC24
    Rated speedRPM2000400080002000
    Continuous stall torqueN.m0.0720.0720.0720.144
    Rated torqueN.m0.0630.0630.0630.125
    Rated powerW13265226
    Peak torqueN.m0.190.190.190.375
    Peak currentA2.75.410.85.3
    Torque constantNm/A0.0740.0350.020.074
    Back E.M.FV/KRPM7.823.662.17.82
    Rotor inertiag.c㎡24242448
    Body lengthmm41414161
    Voltage rangeVDC12～48　　　
    Speed RangeRPM2000～8000　　　
    WeightKg0.30.30.30.45

    ModelUnits42ZW3S61A4042ZW3S61A8042ZW3S81A2042ZW3S81A40
    Number of poles　8　　　
    Number of phase　3　　　
    Rated voltageVDC24
    Rated speedRPM4000800020004000
    Continuous stall torqueN.m0.1440.1440.2250.225
    Rated torqueN.m0.1250.1250.190.19
    Rated powerW5210439.579
    Peak torqueN.m0.3750.3750.570.57
    Peak currentA10.621.27.2514.5
    Torque constantNm/A0.0350.020.0740.035
    Back E.M.FV/KRPM3.662.17.823.66
    Rotor inertiag.c㎡48487272
    Body lengthmm61618181
    Voltage rangeVDC12～48　　　
    Speed RangeRPM2000～8000　　　
    WeightKg0.450.450.60.6

    ModelUnits42ZW3S81A8042ZW3S101A2042ZW3S101A4042ZW3S101A60
    Number of poles　8　　　
    Number of phase　3　　　
    Rated voltageVDC24
    Rated speedRPM8000200040006000
    Continuous stall torqueN.m0.2250.30.30.3
    Rated torqueN.m0.190.250.250.25
    Rated powerW15852.5105157.5
    Peak torqueN.m0.570.750.750.75
    Peak currentA29102030
    Torque constantNm/A0.020.0740.0350.028
    Back E.M.FV/KRPM2.17.823.663
    Rotor inertiag.c㎡72969696
    Body lengthmm81101101101
    Voltage rangeVDC12～48　　　
    Speed RangeRPM2000～8000　　　
    WeightKg0.60.80.80.8

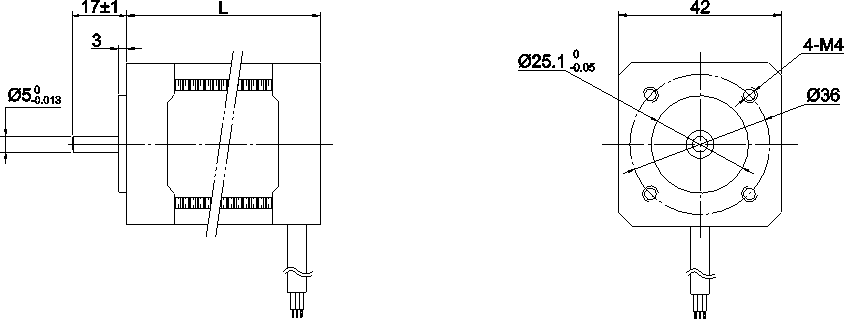

    Dimensions in mm


    Application:
    • solar project
    • automobile
    • communication
    • inkjet printer
    • pump
    • medical blower
    • security
