37mm Outer Rotor Brushless DC Motor

Ask Lasest Price
Brand Name :	OEM
Model Number :
Certification :	CE/ISO/ROHS
Supply Ability :	25000pc/month
Price :	Negotiable
Delivery Time :	15-25days
Payment Terms :	L/C, T/T, Western Union, Paypal

Add to Cart

Product Details
Company Profile

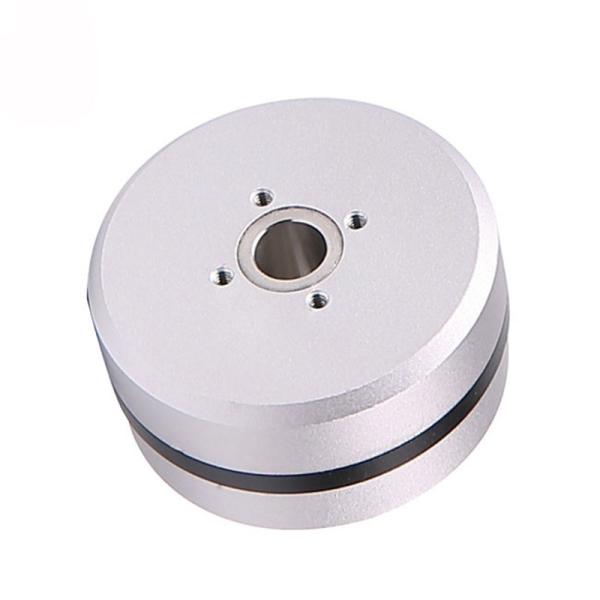

37mm Outer Rotor Brushless DC Motor

37mm Outer Rotor Brushless DC Motor

General specification:

Number of pole-pairs: 7
Power: 30W
Speed: 1000RPM
Input voltage: 8V
Rated current: 1A
Resistance: 5.8 ±10% Ohms
Inductance: 2±20%mH
Rated torque: 0.035Nm
Temperature rise: 80° max
Ambient temperature: -20 to +50°C
Environment humidity: 90% max
Insulation resistance: 100MΩ min, 500V DC
Insulation class: class B
Dielectric strength: 600 AC/50Hz/1mA/1S

Application

Widely applied to large printing equipment, aeromodelling, industrial industry, food processing equipment, household appliances and drone.

FAQ

Q: How can I place a order?
A: Please contact us firstly, we need to confirm the details and provide a outline drawing which included the technical parameter
to you to check first, then we will arrange to produce after your approval.

Q: How long will the delivery time take?
A: Generally it will spend 3-7 days for samples and 10-25 days for production. it is according to the quantity you need.
