F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor

Ask Lasest Price
Brand Name :	OEM
Model Number :
Certification :	CE/ISO/ROHS
Supply Ability :	25000pc/month
Price :	Negotiable
Delivery Time :	15-25days
Payment Terms :	L/C, T/T, Western Union, Paypal

Add to Cart

Product Details
Company Profile

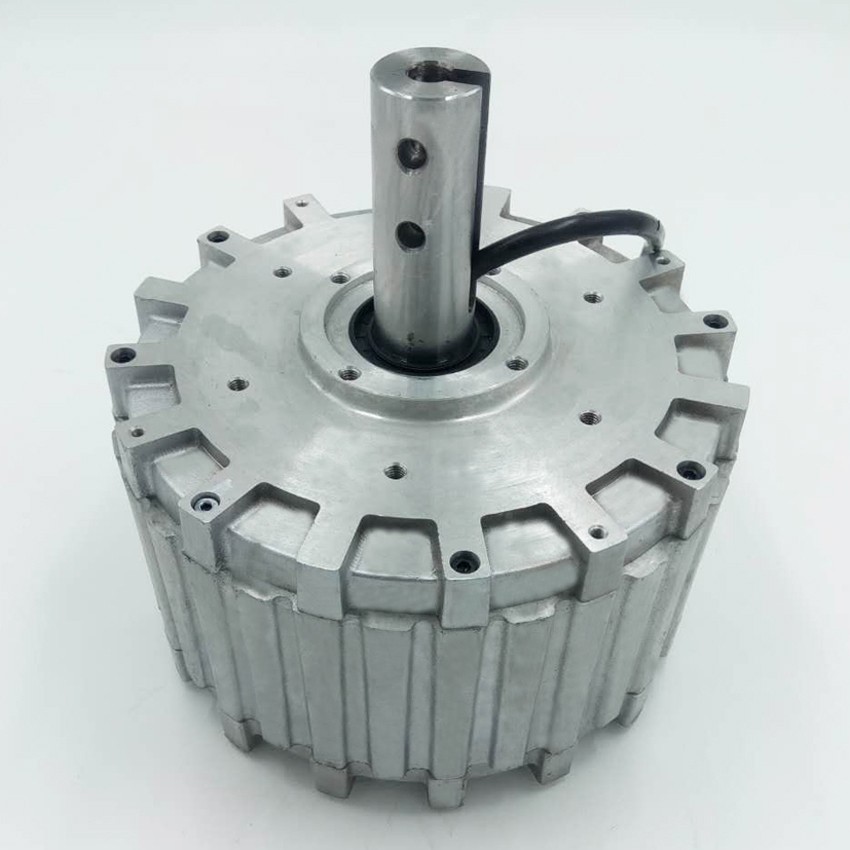

F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor

F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor

The motor parameters:

The Rated Voltage:	DC315V	The rated torque:	140 N.m
The rated power:	1500 W	The noise:	60 dB
Rated speed:	150 rpm	The highest speed:	300 rpm
Pretection grade:	IP56	Operation mode:	S1
Insulation grade:	F	Vibration:	1.0 mm/s
Net weight:	25.2 kg	Grosss weight:	31.6 kg

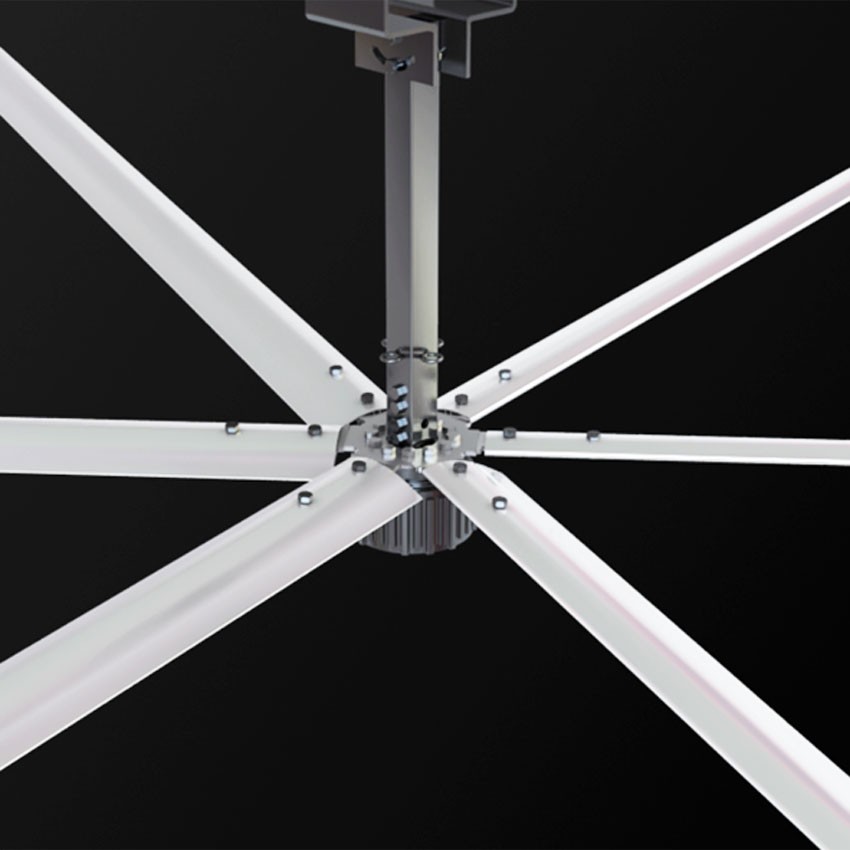

The Big ceiling fan Data sheet as below:

Model Number	Voltage(V)	Power(W)	Speed (RPM)	Blade Diameter (meter)	Air Volume(m³/min)	Noise	Blade Quantity(Piece)	Weight (Kg)
PMSM330-735	220/380	1560	50	7.35	13185	40	6	158.15
PMSM330-675	220/380	1152	55	6.75	12862	40	6	152.75
PMSM330-625	220/380	1000	60	6.25	12261	40	6	148.25
PMSM330-550	220/380	800	65	5.5	11963	40	6	141.5
PMSM330-520	220/380	750	70	5.2	11175	40	6	138.8
PMSM255-470	220	700	75	4.7	7075	40	6	103.4
PMSM255-420	220	530	80	4.2	5213	40	6	99.8
PMSM255-360	220	410	95	3.6	3326	40	6	93.8
PMSM255-220	220	330	115	2.2	1669	40	6	81.8

Application:

Animal husbandry: large farms, livestock farms, breeding industry.
Sports industry: gymnasium, gymnasium, sports training hall, training room.
Recreation: large playground, animal botanical garden, children's playground.
Transportation hub: airport, high-speed railway station, bus station, subway station, pier.
Business places: exhibition center, 4S shop, large professional products market, large shopping malls and supermarkets.

Other types: front office, villa, canteen, museum, large outdoor commercial activity lease.

F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor

Features and advantages:

1. Brushless motor has no spark.
2. The service life is over 50,000 hours
3. High efficiency, large power, small volume, light weight.
4. Good starting and speed adjustment.
5. Energy saving: 35%- 50%.
6. The explosion-proof type
7. Low noise, Just 60 decibels
8. Without reduction gearbox,No oil leakage, no maintenance costs
