    4 Pole Sensorless Brushless DC Motor

    Ask Lasest Price
    Brand Name : OEM
    Model Number :
    Certification : CE/ISO/ROHS
    Supply Ability : 25000pc/month
    Price : Negotiable
    Delivery Time : 15-25days
    Payment Terms : L/C, T/T, Western Union, Paypal
    • Product Details
    • Company Profile

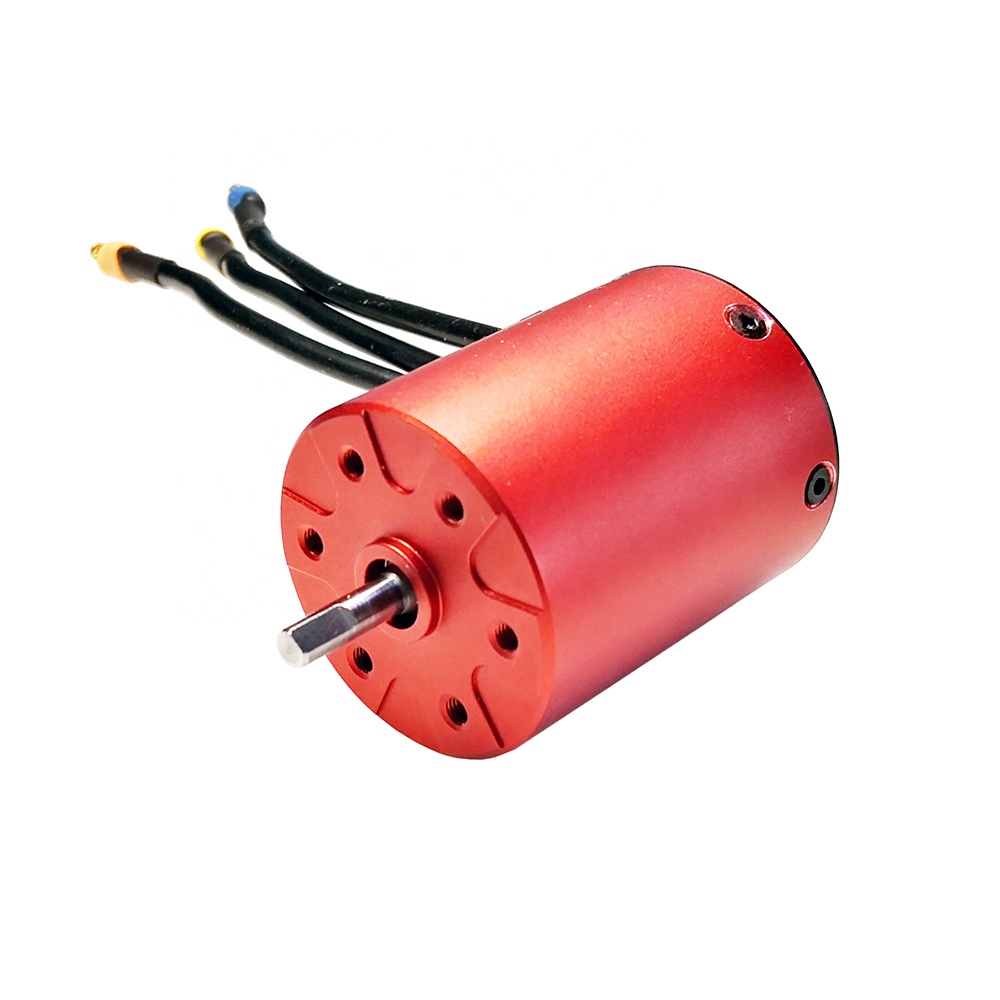

    4 Pole Sensorless Brushless DC Motor

    4 Pole Sensorless Brushless DC Motor
    Product Description

    1. 4-pole 12-slot hi-torque inrunner waterproof brushless motor design.
    2. CNC machined 6061 T6 billet aluminum heatsink.
    3. High purity copper winding maximizes efficiency.
    4. High RPM NMB or NSK Ball bearings.
    5. Universal fit, fit all 1/10 brushless cars-multi-mounting system for M3 screws.
    6. Precision balanced rotor, smoothness for best reliability and maximum RPM.
    7. Precision engineered for maximum energy conversion.

    8. Shaft(mm):¢5
    9. Connector: 3.5mm Gold Plug

    10. Diameter: 35.8mm
    11. Dimensions(L x D): 45x 35.8 mm
    12. Weight:160g

    13. Fit 1/10 RC Car

    14. Rated voltage: 48V

    15. No load: 20000RPM 2.8A Max

    16. Shaft length, performance, cables, connector can be adjusted.

    4 Pole Sensorless Brushless DC Motor
    Q: What kind products you can provide?
    A: Our main products are DC Motors(coreless, brushless and brushed), Gear Motors(planetary, worm and spur type), Stepper Motors, Synchronous Motors . We also have our own plastic injection and metal stamping and die casting factories which enables us to provide plastic parts and metal parts and OEM service for whole products including packing.
    Q: Can I have a motor with 12V or for XXX application?
    A: Please share more details like the speed, torque, motor size. If you can send us a picture with marked dimension or detailed datasheet, that'll be great. We can't tell what kind motor you are looking for just by voltage and application.
    Q: Can you share the lifetime of the motor?
    A: For all of our motors, they are custom made based on different requirements, so there is no standard lifetime. And lifetime is also related how you use the motor under which load. Normally our client will provide lifetime requirements and noise level etc. in the beginning then when we arrange samples, we will take those into consideration to choose suitable motor and materials to reach. Client will perform lifetime testing in their lab and their order will be arranged based on the passed samples.
    Q: Can you provide accessories like cables, connector, gear, encoder etc.?
    A:Yes, we can. If those are not standard, extra cost for moulding might be needed.
    Q: What kind encoder you can provide? What is the resolution?
    A: We can provide magnetic and optical encoder based on different resolution requirements(3PPR, 12PPR, 13PPR, 100PPR etc.). Extra cost for pcba might be needed if not existed.
