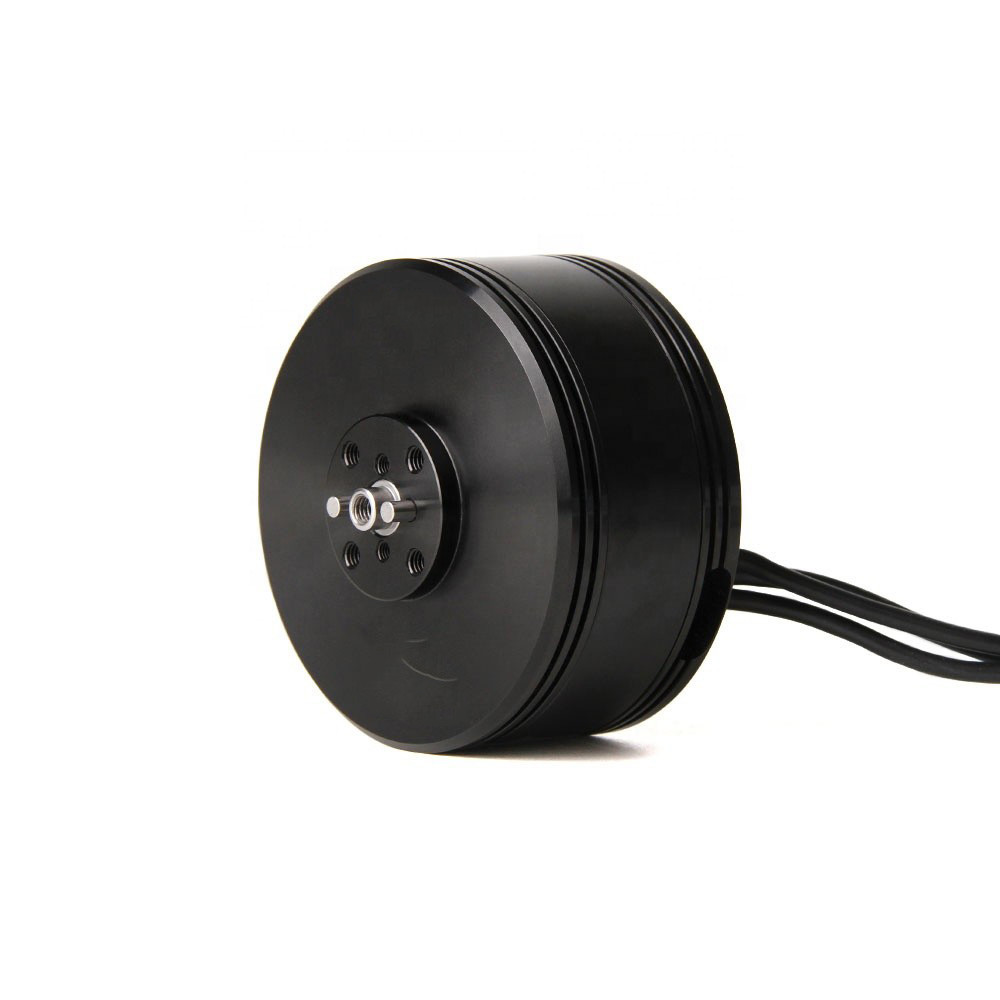

Product Description
| Specifications |
| Internal Resistance | 80m | Configuration | 24N28P |
| Shaft Diameter | 6mm | Motor Dimensions | Φ69×37mm |
| Stator Diameter | 62mm | Stator Height | 15mm |
| AWG | 16# | Cable Length | 600mm |
| Weight Including Cables | 375g | Weight Excluding Cables | 345g |
| No.of Cells(Lipo) | 6-14S | Idle Current@10v | 1A |
| Max Continuous Power 180S | 1800W | Max Continuous current 180S | 38A |
| Load Testing Data |
| Ambient Temperature | 18℃ | Voltage | DC Power Supplier |
| Item No. | Voltage
(V) | Prop | Throttle | Current
(A) | Power
(W) | Thrust
(G) | RPM | Efficiency
(G/W) | Operating Temperature
(℃) |
| KV170 | 48 | T-motor 20*6CF | 50% | 5.4 | 259.20 | 2116 | 4152 | 8.16 | 55 |
| 55% | 6.4 | 307.20 | 2371 | 4425 | 7.72 |
| 60% | 7.7 | 369.60 | 2762 | 4709 | 7.47 |
| 65% | 9.3 | 446.40 | 3125 | 5014 | 7.00 |
| 75% | 13.2 | 633.60 | 4002 | 5626 | 6.32 |
| 85% | 17.3 | 830.40 | 4821 | 6177 | 5.81 |
| 100% | 25.4 | 1219.20 | 6246 | 6992 | 5.12 |
| T-motor 22*6.6CF | 50% | 6.6 | 316.8 | 2801 | 3703 | 8.84 | 85 |
| 55% | 8.6 | 412.8 | 3312 | 4005 | 8.02 |
| 60% | 9.9 | 475.2 | 3763 | 4289 | 7.92 |
| 65% | 12.4 | 595.2 | 4356 | 4575 | 7.32 |
| 75% | 17.1 | 820.8 | 5372 | 5091 | 6.54 |
| 85% | 23.2 | 1113.6 | 6582 | 5635 | 5.91 |
| 100% | 34 | 1632 | 8414 | 6374 | 5.16 |
| Notes:The test condition of temperature is motor surface
temperature in 100% throttle while the motor run 10min. |
Feature
8KG+ Thrust
Weight decrease is achieved by optimizing stator structure while
maintaining its mechanical strength, Manual winding helps increase
slot fullness for thrust above 8kg with power of more than 1800W.
Low Noise, Stable & Reliable
24N28P configuration reduces motor vibration in operation for motor
wearing diminution, service life extension and noise debasement.
Motors run more smoothly than motors with general configuration at
max. throttle.
Impact Resistant
Optimized machining precision and motor structure with motor core
part protection effectively avoids cases as to the failure in motor
utilization after crash and impact.
Dustproof , Waterproof & Cooling
Closed exterior and lattice structure take account of both
dustproof, waterproof and cooling effects which handles usage in
various environment.
Anti-corrosion Coil
Special coating gets the coil free of corrosion from pesticides.
