3800 RPM 1800W Torque 1Nm Sensorless Brushless DC Motor
Product Description
The 4 & 6 pole high-powered sensor-less brush-less motor are
specially designed for 1:10, 1:8 on-road, off-road scale vehicles.
They feature more smooth power output, higher torque and better
efficiency. In comparison, 4P motor has much quicker and stable
thrust than 2P motors. It makes the Pro-Racing series motors firm
in structure and faster in cooling that each and every alu. alloy
motor part is made of high quality materials and processed by high
precision CNC machining. Other strengths that can be found in
Pro-racing motors are the stators and magnets of high grade.
Key Features
* Supper smooth start
* Output supper punch and torque
* Supper fast and smooth acceleration
* New sensor design improves performance and efficiency
* Alloy case with improved ventilation system
* Extension wires with golden plug
* High quality stator materials
* Precision balanced rotor
Product Parameters

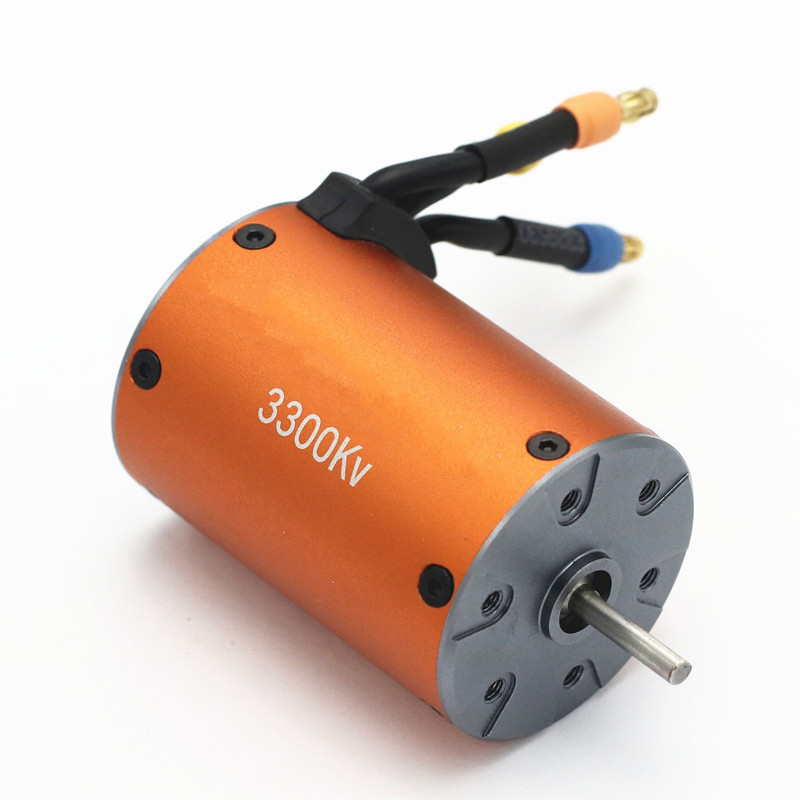

Model | RT3652-4P | RT3652-6P | RT3661-4P | RT3661-6P | RT4070-4P | RT4070-6P |
KV(RPM/V) | 3300 | 3800 | 4300 | 3900 | 2100 | 1800 |
No-load Current at 7.2V | 3.0+/-0.5 | 3.5+/-0.5 | 3.5+/-0.5 | 3.5+/-0.5 | 2.5+/-0.6 | 2.0+/-0.5 |
Operational Voltage Limit | 4.5-12.6 | 4.5-12.6 | 4.5-12.6 | 4.5-12.6 | 4.5-16.8 | 4.5-16.8 |
Max Power | 330 | 380 | 500 | 600 | 1800 | 1800 |
Max Current | 110 | 140 | 130 | 150 | 180 | 180 |
Maximum Efficiency | 91% | 91% | 90% | 91% | 91% | 91% |
Operational Temp. Limit(C/F) | 130℃ | 130℃ | 130℃ | 130℃ | 130℃ | 130℃ |
Dimension(mm) | D35.8*L52 | D35.8*L52 | D35.8*L61 | D35.8*L61 | D35.8*L70 | D35.8*L70 |
Weight(G) | 180 | 175 | 172 | 217.8 | 209.5 | 343.6 |
Connector Style | 3.5mm golden plug | 4.0mm golden plug | 4.0mm golden plug |
Extension Wire Length(mm) | 115 |
AxleDiameter/ Extension(mm) | D3.175*L15 | D5.0*L15 | D5.0*L15 |
We can custom made whatever brushless dc motor you want. Before you
give us inquirey, please supply below requirements to us, the more
details you can offer, the better suggestion we can give.
Your Requirements:
1. Please choose inrunner motor or outrunner motor you need.
2. Do you have motor diameter and length limited?
3. What working voltage you will use for this motor?
4. What's your expected rated power?
5. What's your expected RPM?
6. You battery pack can bear how high peak current?
7. You estimated yearly sales qtys?
8. Do you need the speed controller together or if you have your
own speed controller, please let us know the specifications.
9. Other requirements if you need, for example, wire length,
connector types and so on.
Contact Us directly via Trade Manager or send us email both ok, we
will reply ASAP in 24 hours.
Below our custom made motors for other clients for your
information.
