60KV 120W Skateboard Sensored Brushless DC Motor

Ask Lasest Price
Brand Name :	OEM
Model Number :
Certification :	CE/ISO/ROHS
Price :	Negotiable
Delivery Time :	15-25days
Payment Terms :	L/C, T/T, Western Union, Paypal
Supply Ability :	25000pc/month

Add to Cart

Product Details
Company Profile

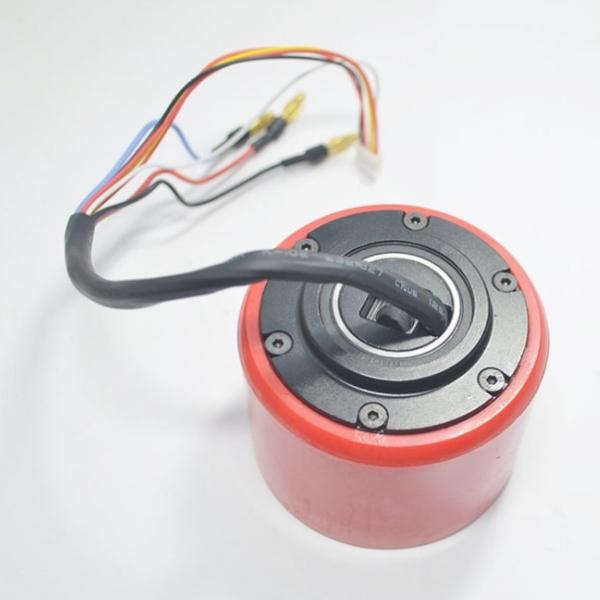

60KV 120W Skateboard Sensored Brushless DC Motor

60KV 120W Skateboard Sensored Brushless DC Motor

Product Description

KV: 60KV

Speed (24V): 1440RPM (speed can be customized according to customer requirements)

Speed (36V): 2160RPM (speed can be customized according to customer requirements)

Voltage: 24-48 v

Power: 120w

Motor type: brushless gearless hub motor Motor plus PU tire

net weight: 0.7 kg

Tire diameter: 70 mm

Tire width: 52mm

Motor shaft diameter: M17

Motor shaft length :customized

Motor cable length: 20-50 cm (optional)

No-load speed: 24V900 rpm (0.35A) 36V1350 rpm (0.38A) 48V1850 rpm (0.42A)

Rated speed: 700-1800 rpm (optional)

Corresponding controller: 24v36v48v

low power controller: 150 watt dc electric motor

The features

* Offering the stable and steady start.
* Obtaining the powerful impulse together with stronger torque.
* The acceleration is sharper and smoother.
* The Aluminium alloy shell has been added in the improved cooling system.
* The motor contains the gold welded banana connecotors.
* High-quality silicon steel sheets.
* High accurate balanced rotator.

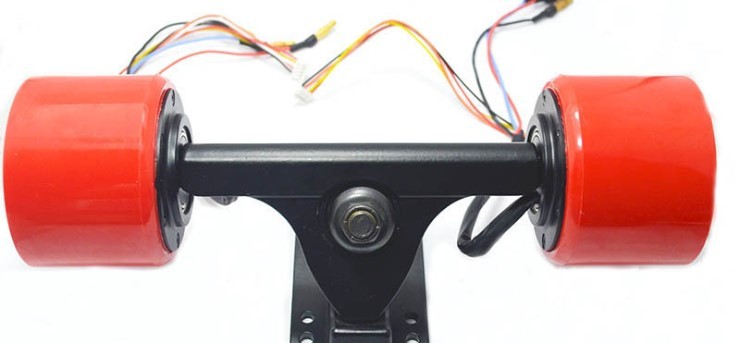

60KV 120W Skateboard Sensored Brushless DC Motor
