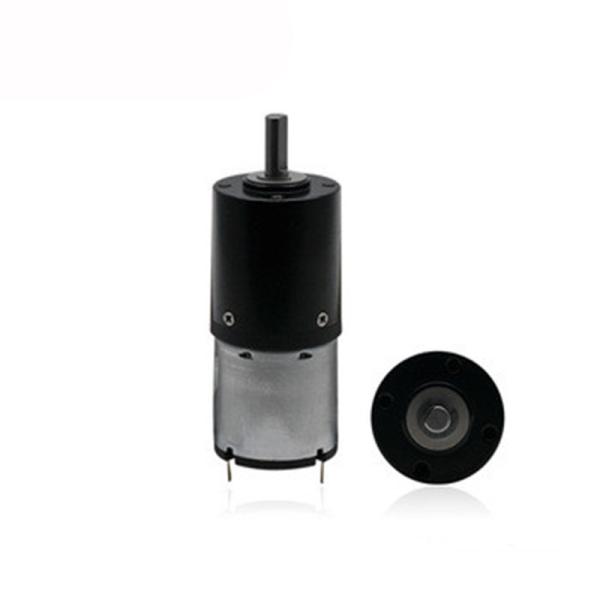

    28mm Brushless DC Planetary Gear Motor

    Ask Lasest Price
    Brand Name : OEM
    Model Number :
    Certification : CE/ISO/ROHS
    Supply Ability : 25000pc/month
    Price : Negotiable
    Delivery Time : 15-25days
    Payment Terms : L/C, T/T, Western Union, Paypal
    • Product Details
    • Company Profile

    28mm Brushless DC Planetary Gear Motor

    28mm Brushless DC Planetary Gear Motor


    Product Description
    • high torque dc brushless planetary gear motor
    • Matched motor:brushless dc motor
    • Voltage: 24V
    • No load speed: 35rpm
    • No load current: 150mA
    • Load speed: 31rpm
    • Load current: 350mA
    • Load torque: 7444g.cm

    We also have the following parameters for reference:


    Model
    Application ParametersRated Torque of Gear BoxInstant Torque of Gear BoxGear RatioGear Box Length
    RatedAt No LoadAt Rated LoadOverall Length
    VoltageSpeedCurrentSpeedCurrentTorque
    VDCrpmmArpmmAgf.cmmN.mmmgf.cmgf.cmmm
    ZWBMD028028-3624.02111501814001882184.667.3330001000003629.8
    ZWBMD028028-6424.01191501043502206216.375.8400001200006438.3
    ZWBMD028028-9624.079150693503308324.54000012000096
    ZWBMD028028-14424.054150463504963486.740000120000144
    ZWBMD028028-21624.035150313507444730.033000100000216
    ZWBMD028028-25624.030150263506617648.984.34000012000025646.8
    ZWBMD028028-38424.019150173509925973.440000120000384
    ZWBMD028028-57624.01315012350148881460.140000120000576
    ZWBMD028028-86424.091508350223322190.140000120000864
    ZWBMD028028-129624.061505350330003236.3330001000001296


    28mm Brushless DC Planetary Gear Motor


    Application:


    Audio and visual equipmentnotebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
    Household applicationelectric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
    Office automation equipmentOA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
    Automotive productsconditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
    Toys and modelsradio control model, automatic cruise control, ride-on toy and etc.
    Medical Applicationblood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
    Industrialsdisplay, flow control valves and etc.
    Electric power toolselectric drill, screwdriver and etc.
    Precision instrumentsmonitor, optics instruments,automatic vending machine and etc.
    cosmetic tooleyebrow pencil, Electric threading knife,Facial pore cleasner
    , Puff machine,eyebrow tweezers and etc.
    Our Services
    • ODM & OEM
    • Gearbox design and development
    • Related technology support
