Low Vibration 5 Poles 180W Brushless DC Planetary Gear Motor

Ask Lasest Price
Brand Name :	OEM
Model Number :
Certification :	CE/ISO/ROHS
Supply Ability :	25000pc/month
Price :	Negotiable
Delivery Time :	15-25days
Payment Terms :	L/C, T/T, Western Union, Paypal

Add to Cart

Product Details
Company Profile

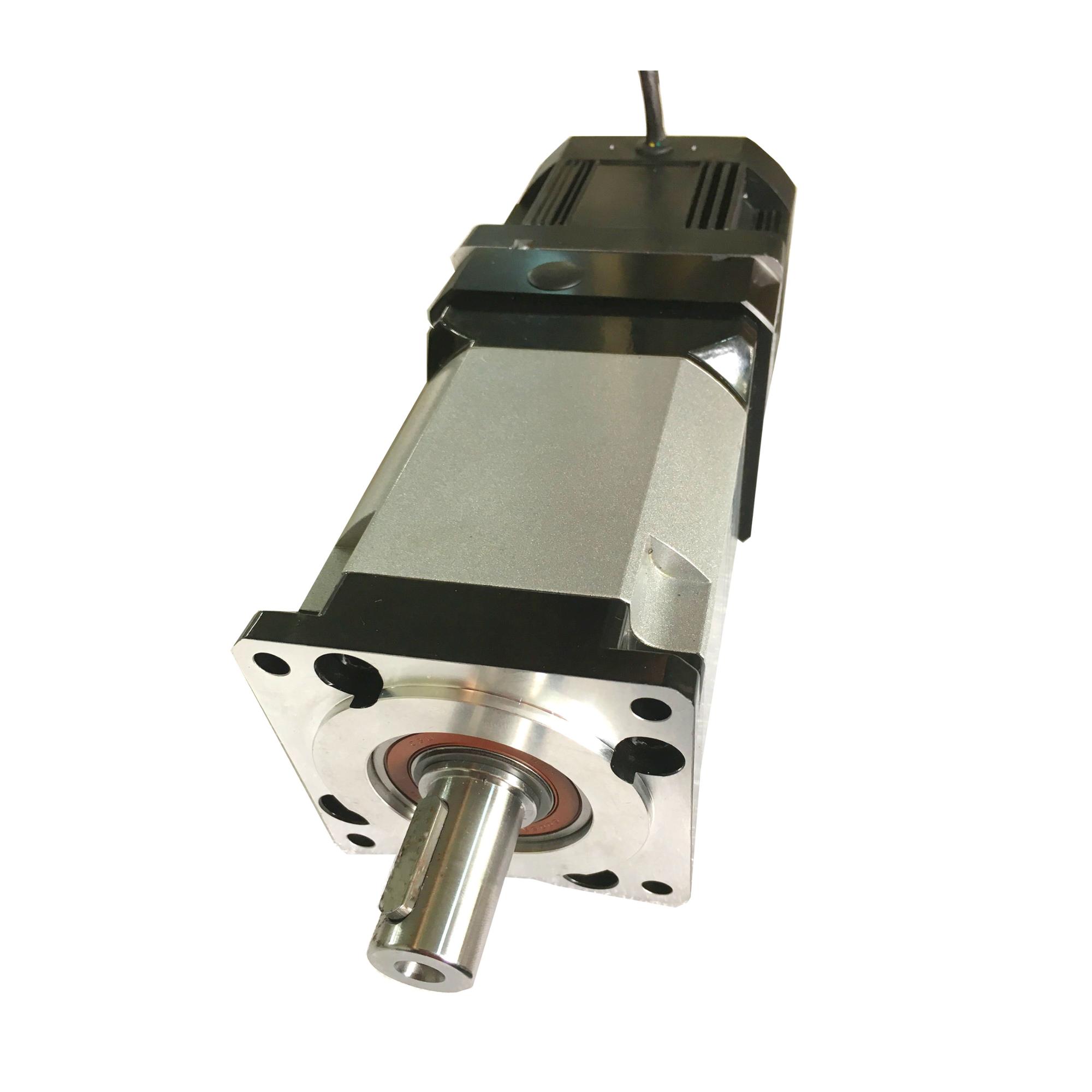

Low Vibration 5 Poles 180W Brushless DC Planetary Gear Motor

Low Vibration 5 Poles 180W Brushless DC Planetary Gear Motor

Products Description

This is a kind of brushless DC motor installed with planetary gearbox. High output torque and low rotation speed are major characteristics of this kind of product. Some charateristics of motor such as low noise, adjustable rotation speed and high performance efficiency. are also satisfied.

Advantages

Low Noise
Low Vibration
High Accuracy
High Efficiency
Long Service Life
Gearboxs Avaliable
(Planetary Gearbox, Worm Gearbox, Spiral Gearbox)
Customization Avaliable

Parameters

Power Supply	Direct Current
Commutation	Brushless
Motor Type	Permanent magnet Motor
Pair of Poles	5
Phase	3
Ingress Protection	IP54

Cooling Method	Natural Cooling
Working Environment	Explosion-proof brushless dc motor should be avoided using in corrosion gaseous or extreme high humidity environment.
Temperature	0°C ~ 55°C
Humidity	85%RHMax
Insulation Class	B Class
Seismic/Shock Resistance	0.5/2.5G

Low Vibration 5 Poles 180W Brushless DC Planetary Gear Motor

Motor Details

Product Name	Brushless DC motor
Rated Voltage (V)	24V/36V/48V/310VDC
Rated Power (W)	180W
Rated Current (A)	11A
Rated Torque (N.m)	2N.m(MOTOR) based on gear ratio
Rated Rotation Speed (rpm)	based on gear ratio (3000rpm output rotation speed of motor)
No-Load Rotation Speed (rpm)	based on gear ratio (3500rpm output rotation speed of motor)
Insulation Resistance @ 500VAC (MΩ)	100
Shaft Type	Key Shape
Size (mm)	92*92
Protection Feature	customizable (water-proof/explosion-proof)

Product Tags:

180W bldc planetary gear motor

Low Vibration dc planetary geared motor

IP54 brushless motor planetary gearbox
