2Nm Torque Low Noise 28mm Brushless DC Planetary Gear Motor

Ask Lasest Price
Brand Name :	OEM
Model Number :
Certification :	CE/ISO/ROHS
Supply Ability :	25000pc/month
Price :	Negotiable
Delivery Time :	15-25days
Payment Terms :	L/C, T/T, Western Union, Paypal

Add to Cart

Product Details
Company Profile

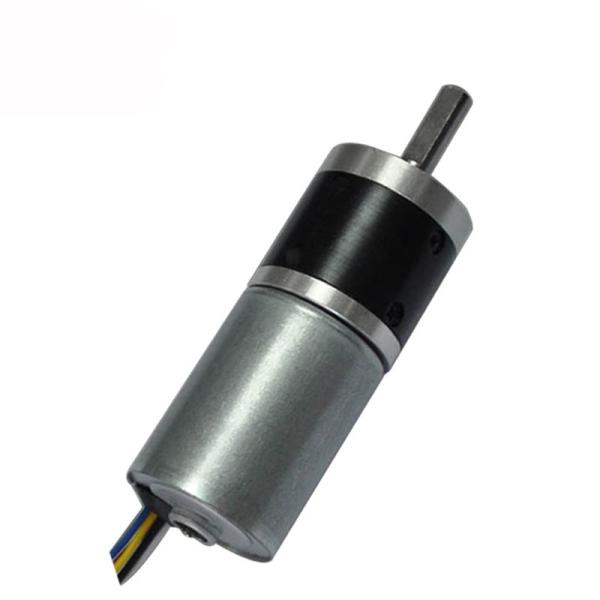

2Nm Torque Low Noise 28mm Brushless DC Planetary Gear Motor

2Nm Torque Low Noise 28mm Brushless DC Planetary Gear Motor

Main Features

28mm planetary gearbox plus 28mm brushless motor
Small size dc gear motor with low speed and big torque
28mm gear motor provide 2.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio:4,14,19,27,51,71,100,139,189,264,369,516,720

2Nm Torque Low Noise 28mm Brushless DC Planetary Gear Motor

TEC2838-0630	Rated voltage:6V DC	Rated speed:2200r/min	Output power:1.8W
	No-load speed:3000r/min	Rated torque:80g.cm	Stall torque:300g/cm
	No-load current:220mA	Rated current:450mA	Stall current:2.0A
TEC2838-1245	Rated voltage:12V DC	Rated speed:3600r/min	Output power:4.1W
	No-load speed:4500r/min	Rated torque:110g.cm	Stall torque:430g/cm
	No-load current:200mA	Rated current:550mA	Stall current:1.8A
TEC2838-2460	Rated voltage:24V DC	Rated speed:4400r/min	Output power:5.9W
	No-load speed:6000r/min	Rated torque:130g.cm	Stall torque:600g/cm
	No-load current:80mA	Rated current:180mA	Stall current:2.0A

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
